世界上转环直径最大(6000mm)的立环高梯度磁选机

发布者: 中国重型机械工业协会 发布时间:2024-03-01阅读次数:45

世界上转环直径最大(6000mm)的立环高梯度磁选机

——2023年重型机械世界之最科技成果获奖项目专题报道

设备/技术名称:特大型智能立环高梯度磁选机(转环直径:Ф6000mm)

研制单位:山东华特磁电科技股份有限公司 http://www.sdhuate.com/

首次投运时间:2023年08月

联系人:王成业,15265636006, sdhtxmb@163.com

特大型智能立环高梯度磁选机属光机电一体化技术领域的自动化智能控制选除设备,具有分选腔液位自动调整、冷却系统温度控制、卸矿水压力实时检测调整、自动润滑等多点位自动化控制功能,被广泛应用于弱磁性金属矿的湿式分选和非金属矿的除铁提纯。

产品高11.8米,转环直径6米,重达700吨,背景场强可达1.8T,磁场调节量大,应用范围广;处理量大,台时干矿处理量达800~1200吨,是3m立环处理量的8 倍;能耗极低,吨矿处理电耗仅为0.1~0.2度,与能耗较低的4m立环相比,节电达50% 以上;吨矿产出占地空间小,工艺布置简单,可节省工程投入30%以上,产品核心技术达到国际领先水平。

经扛旗世界纪录机构(CARRYING THE FLAG WORLD RECORDS LIMITED)官方认定:“山东华特磁电科技股份有限公司自主研制的LHGC-6000型立环高梯度磁选机是世界上转环直径(6米)最大的磁选设备”,满足了千万吨级大型矿山企业对特大型装备的需求。

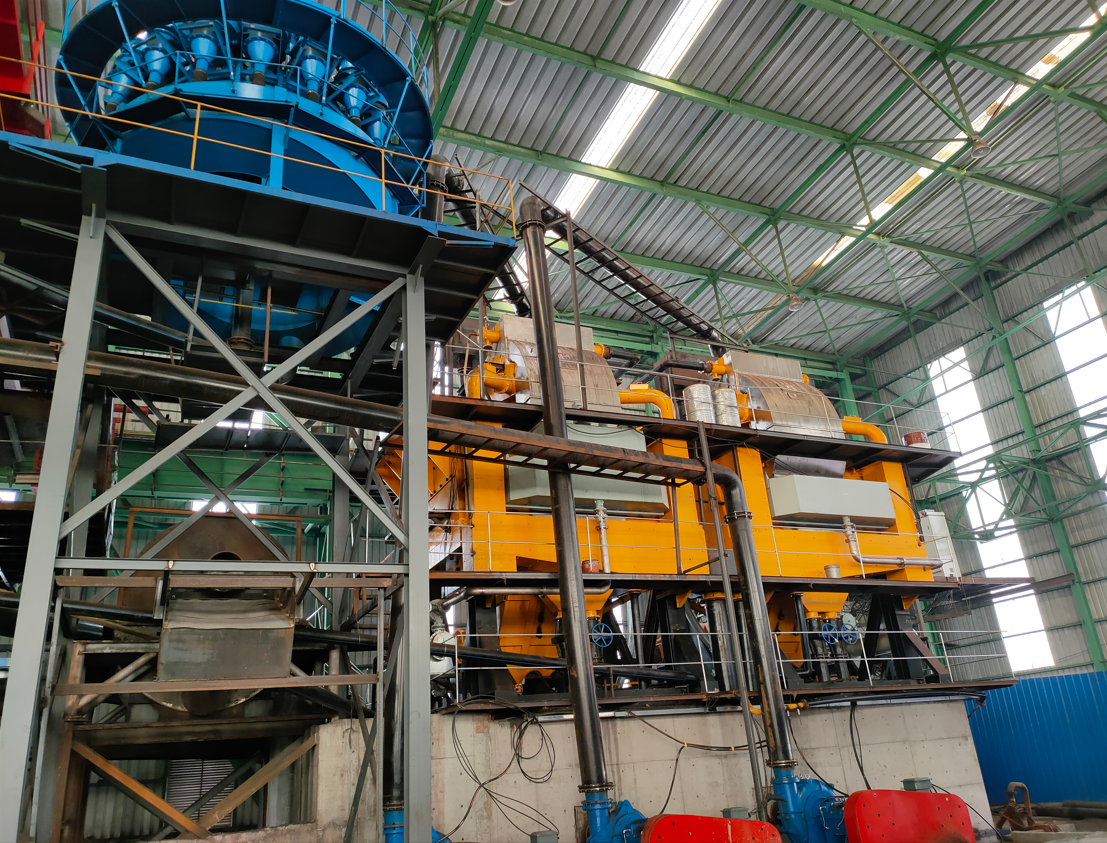

图:6米特大型智能立环高梯度磁选机在江苏裕宝矿业有限公司进口赤铁矿应用现场



THE WORLD'S LARGEST VERTICAL-RING HIGH GRADIENT MAGNETIC SEPARATOR BY RING DIAMETER (6000MM)

The LHGC-6000 type vertical-ring high gradient magnetic separator

Shandong Huate Magnet Technology Co., Ltd.  http://www.sdhuate.com/

The LHGC-6000 extra large intelligent vertical ring high gradient magnetic separator is an automated intelligent control separation equipment in the field of optical, mechanical and electrical integration technology. It has multi-point automatic control functions such as automatic adjustment of liquid level in the separation chamber, temperature control of the cooling system, real-time detection and adjustment of mineral discharge water pressure, automatic lubrication, etc. It is widely used in wet separation of weakly magnetic metal ores and iron removal and purification of non-metallic minerals. The product is 11.8 meters high, has a ring diameter of 6 meters, weighs 700 tons, has a background field strength of up to 1.8T, has a large magnetic field adjustment capacity and a wide range of applications; it has a large processing capacity, with a dry ore processing capacity of 800 to 1,200 tons per hour, which is 8 times that of the 3-meter vertical ring WHGMS; the energy consumption is extremely low, and the power consumption per ton of ore processing is only

0.1 to 0.2 kWh. compared with the 4-meter vertical ring WHGMS with lower energy consumption, the power saving is more than 50%; occupying a small space per ton of ore output, and the process layout is simple, which can save more than 30% of the engineering investment, and the core technology of the product has reached the international leading level. Officially recognized by CARRYING THE FLAG WORLD RECORDS LIMITED: "The LHGC-6000 vertical ring high gradient magnetic separator independently developed by Shandong Huate Magnet Technology Co., Ltd. is the magnetic separation equipment with the largest diameter (6 meters) of rotation ring in the world", meeting the demand for extra-large equipment of large-scale mining enterprises with an output of tens of millions of tons.
